M-STAMP. Multi Sensor Stabilized Miniature Payload

Print
M-STAMP
M-STAMP
  • M-STAMP
  • M-STAMP
  • M-STAMP
  • M-STAMP
Main characteristics
SKU 2212
Vendor Controp
Category Medium Range Surveillance
Active range (m) 3000
Management 5-Z, Auto, manual, slow, priority
Dimensions, HWD Ø 152 mm
Weight 1.3 kg
Shipment According EUC

Multi Sensor Stabilized Miniature Payload

M-STAMP Multi Sensor Payload (Uncooled Infrared IR x4 Continuous Optical Zoom and CCD x10 Continuous Optical Zoom)

The M-STAMP payload is a miniature, lightweight, electro-optical, gyro-stabilized, airborne sensor which is designed to be carried by a miniature UAV, for tactical "Over-the-Hill" reconnaissance in daylight and / or at night. The STAMP payloads, provide small UAVs with the image quality of large UAV payloads all in one miniature camera system.

The STAMP payloads can operate in the following modes:

Observations Mode (Joystick Rate Mode)
Video Target Tracking Mode (optional)
Hold Coordinate Mode (optional)
Point to Coordinate Mode (optional)
Scan / Mosaic Mode (optional)

MAIN FEATURES

Stabilized miniature daylight payloads for surveillance and reconnaissance on a variety of small UAVs and small A/C.
Gyro-stabilized image independent of platform maneuvers and vibrations.
Three (3) Gimbal System.
Very light weight and low power consumption.
High performance image resolution and quality.
Variety of day and night sensors
Continuous Optical Zoom.
Graphics superimposed on video.
LOS data on video signal.

Mounting flexibility:

Horizontal- Nose Mount
Vertical up or down; Belly Mount

One LRU, One Plug
Low cost
Compatible for high landing G Shock
Proven in battle

OPTIONS

Slip Ring
Integrated INS/GPS on Line of Sight for Point to Coordinate capability.
Payload Operating Unit (POU) also available, for evaluation and maintenance purposes.

VARIETY OF CONFIGURATIONS

D-STAMP-HD (CMOS 1/3" x9 / x20 Continuous Optical Zoom)
U-STAMP – Uncooled Infrared IR Single FOV Camera
U-STAMP-Z – Uncooled Infrared IR x4 Continuous Optical Zoom Camera
U-STAMP-DF – Uncooled Infrared IR Dual Field-of-View Camera
M-STAMP Multi Sensor (Uncooled Infrared IR x4 Continuous Optical Zoom and CCD x10 Continuous Optical Zoom)

APPLICATIONS

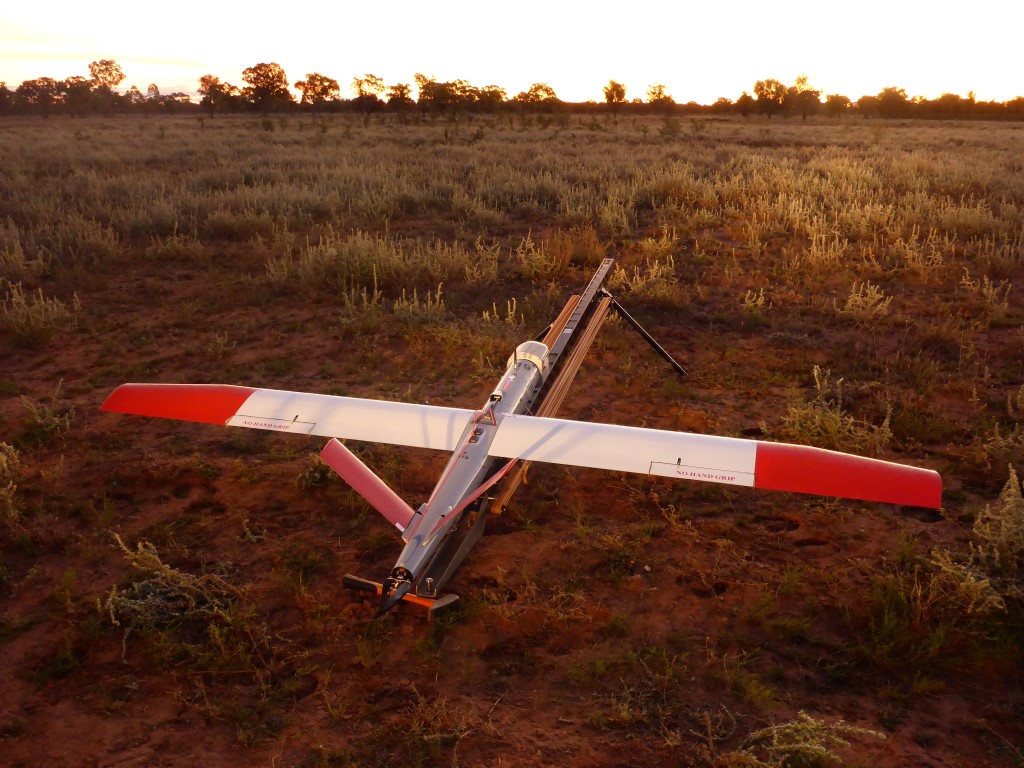

Stabilized miniature payloads for surveillance and reconnaissance on a variety of Air Vehicles:

Small UAVs
VTOLs
UAVs
Small Manned Aircraft
Aerostats
Tactical Observation Balloons
