Narrowband Passive GSM interceptor

Print
Hot offer. The duration of action is limited
Passive Interception System
Passive Interception System
Main characteristics
SKU 2178
Vendor Intercept
Category Cellular interception
Standart 2G (GSM)/900/1800/850/1900
System output Voice, SMS and call related data
Power source 115/230V AC, 80W
Active range (m) 2000
OS Windows 7, 10
Decryption A5.1, A5.2, A5.3 (via class-mark change)
Battery via AC-DC converter
Display 17” TFT, 1024x768
SMS(MMS) in all languages
Antenna Single directional or omnidirectional
Q'ty of channels 8
Connectors USB
Protocols IMEI, IMSI, TMSI
Management API, IP
Delivery set Interceptor,DU, Laptop, antenna, AC-DC converter, S\W
Dimensions, HWD 25X25X12 cm
Weight 7 kg
Shipment Worldwide


Attention


If you are offered a lower price, then you are dealing with fraudulent websites. You will receive no money back no goods


Narrowband Passive GSM interceptor SPI-I

The system was designed for  the air interception for cellular communication in GSM networks

The passive GSM interception system, designed for mass interception of GSM targets only without using active components (BTS).
The receiver unit is designed on Motorola modules.
The system includes external hardware decipherer A5.1 and internal software decipherer A5.2  The system can intercept A5.1 and A5.2 encrypted communication.

The system includes 3 main units:

1. Receiving Units (each unit is only 8 duplex channels)
2. Laptop with interception software and A5/2 real time software decipherer.
3. A5.1 Real Time Hardware Decipherer *

Additional units are available:

1. Amplifier of fake class marks (to reduce A5.3 encryption)
2. Digital Antenna Switcher
3. Module of clones (for getting PN)
4. Portable Pocket Channel Scanner

The system is housed in a ruggedized small unit (25X25X12Cm) connected to the A5/1 real time decipherer either by a USB cable or wirelessly. The basic configuration supports interception of 8 full duplex sessions (intercepted by 16 receivers) from different base stations and different providers (configured by the operator). System is a quad‐band and can be tuned to any GSM frequency used in the specific area.
All intercepted sessions and related data are stored in the system data base for offline analysis and playback.

System can operate with variety of power sources such as AC supply, generator, batteries, car supply etc and by that, it can be installed and operated in many types of configurations and environments (fixed installation, remote control configuration, transportable, vehicular, manpack etc). The architecture is modular and system capacity can be increased for interception of 16, 24, 32 full duplex sessions, all supported by a single real time decipherer.

Main specifications:

Frequency coverage: 850/900/1800/1900MHz
Number of channels: 8/16/24/32 full duplex
Real Time Decryption: A5.0/A5.2 with internal decipherer and A5.1 with external decipherer
Modes of operation: Random/Target/ByFilters
Interception: Up to 8 different BTS (standard configuration)
System output: Voice, SMS in all languages and call related data


* Hardware Decipher A5.1 is not included in the price

Also we recommend new third-generation interceptor SPI-3

File Title Release Date File Type Size (mb) Action
System of Passive Interception GSM. Description 09-15-2019 Documentation (pdf) 0.35 MB download
Passive GSM interceptor. Leaflet 09-15-2019 Documentation (pdf) 0.34 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status


At the beginning of interception, all existing receivers dedicated to forward channels must to be tuned to the nearest-to-target-phone base stations. Depending on its environment, a mobile phone can communicate with a GSM network via one of several preferred base stations located nearby.
In a rural environment or in a small town, there may be 1–2 preferred base stations. In such a case, a GSM Interceptor with 2 forward receiver channels may be enough. But in a big city, where base stations are close to one another, a mobile phone makes its choice among 2–3 or sometimes even more base stations. Then an Interceptor with at least 3 forward receiver channels will be necessary
.

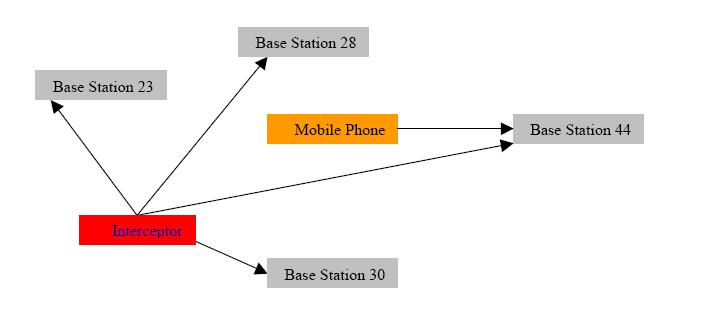

In the picture above the mobile phone may choose among 4 base stations, so the Interceptor needs at least 4 forward receiver channels. If an Interceptor with 2 forward receiver channels is used in this situation, the chances of missing the call will be around 50%.

File Title Release Date File Type Size (mb) Action
System of Passive Interception GSM. Description 09-15-2019 Documentation (pdf) 0.35 MB download
Passive GSM interceptor. Leaflet 09-15-2019 Documentation (pdf) 0.34 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status


Demo and training of interception systems are carried out in our office in Finland or in the client's country, subject to an official invitation from government agencies

To get a demo or training you should provide an end user certificate
File Title Release Date File Type Size (mb) Action
System of Passive Interception GSM. Description 09-15-2019 Documentation (pdf) 0.35 MB download
Passive GSM interceptor. Leaflet 09-15-2019 Documentation (pdf) 0.34 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status

File Title Release Date File Type Size (mb) Action
System of Passive Interception GSM. Description 09-15-2019 Documentation (pdf) 0.35 MB download
Passive GSM interceptor. Leaflet 09-15-2019 Documentation (pdf) 0.34 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status

Additional Product Information
Amplifier of fake class marks (to reduce A5.3 encryption)
Module of clones (for getting PN)
Digital Antenna Switcher
Portable Pocket Channel Scanner
